Multifactor Options
Iris & face fusion, PIN pad, and card reader. Operates in iris only, face only, iris and/or face, or iris-face fusion mode.
Hardware Products
IrisAccess® iA1000
Power of Fusion
Next-level security that feels effortless.
Iris and face fusion with certified Presentation Attack Detection — unmatched accuracy, speed, and a frictionless, contactless experience.

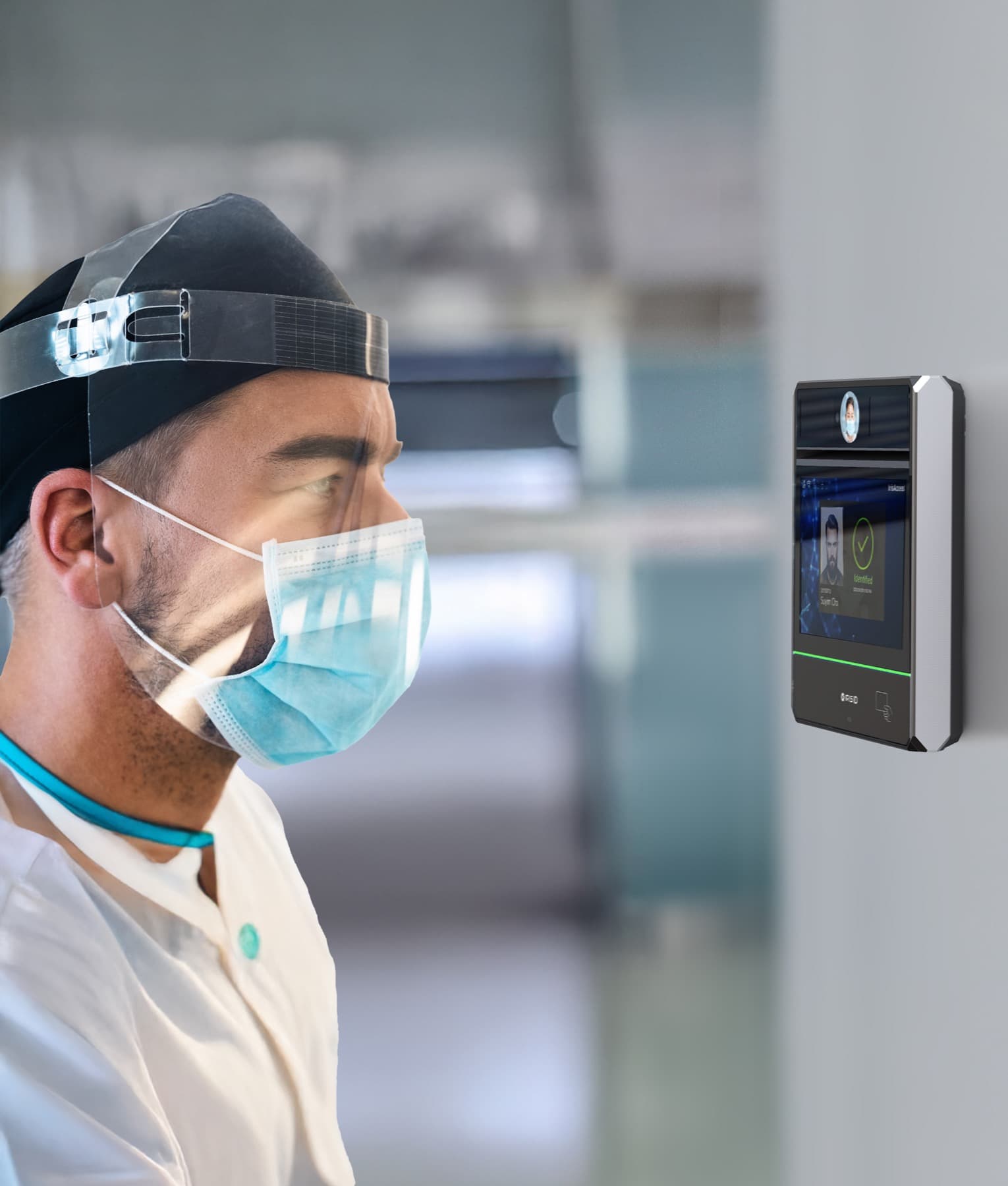

Contactless authentication — even with masks and PPE
<1s
Matching speed
100k
Users on device
30–60cm
Iris capture range
PAD
Anti-spoof certified
Power of Fusion
Single capture. Secure identity.

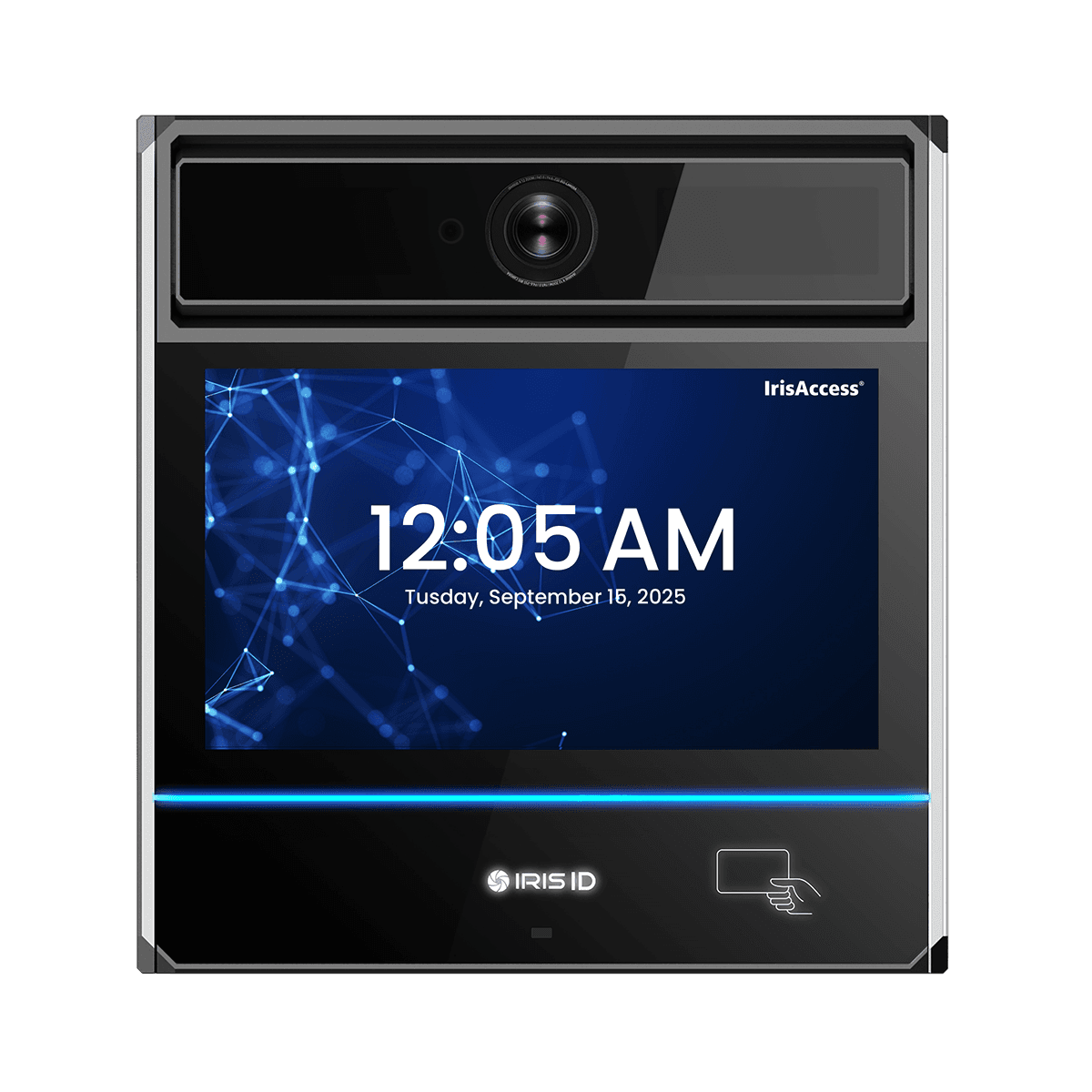

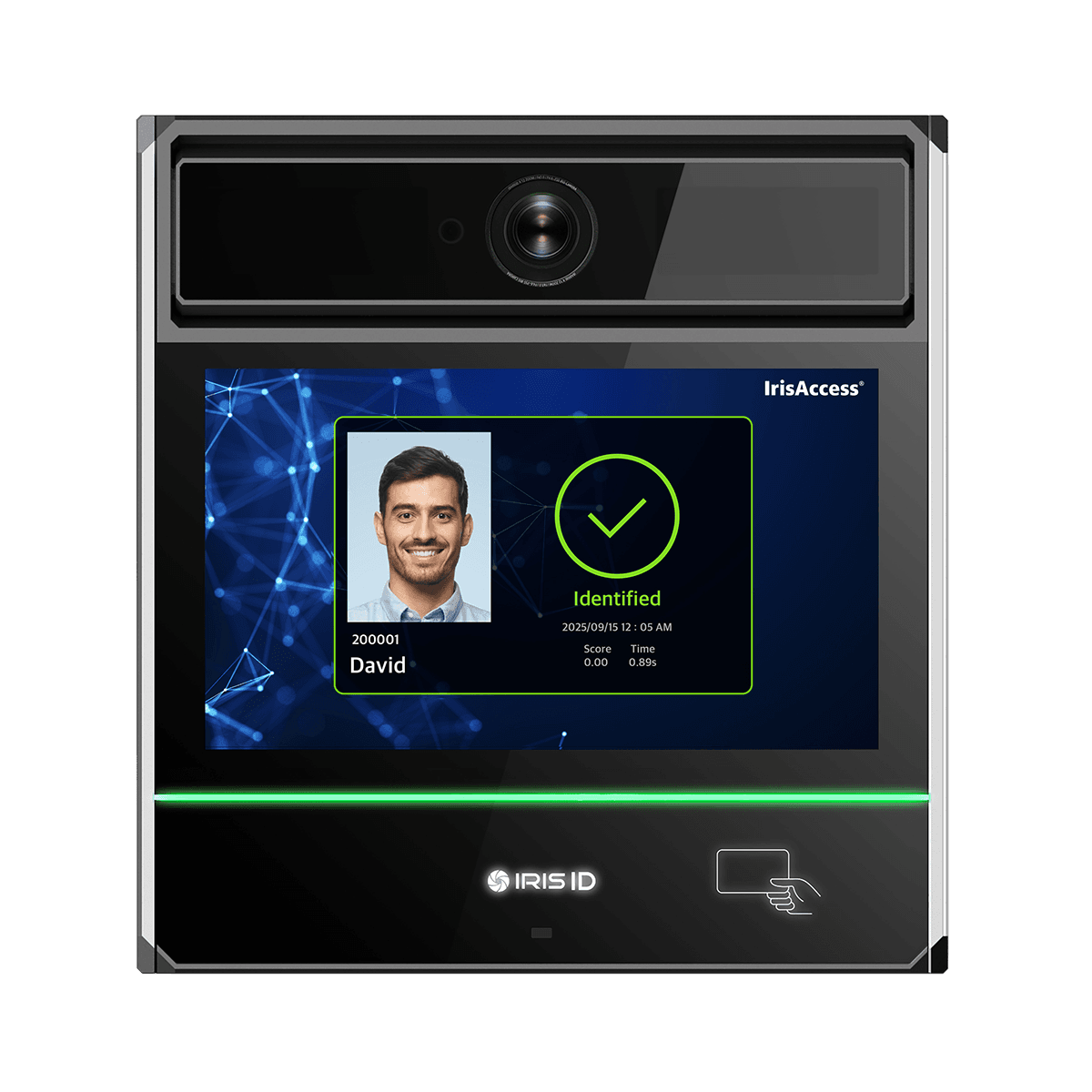

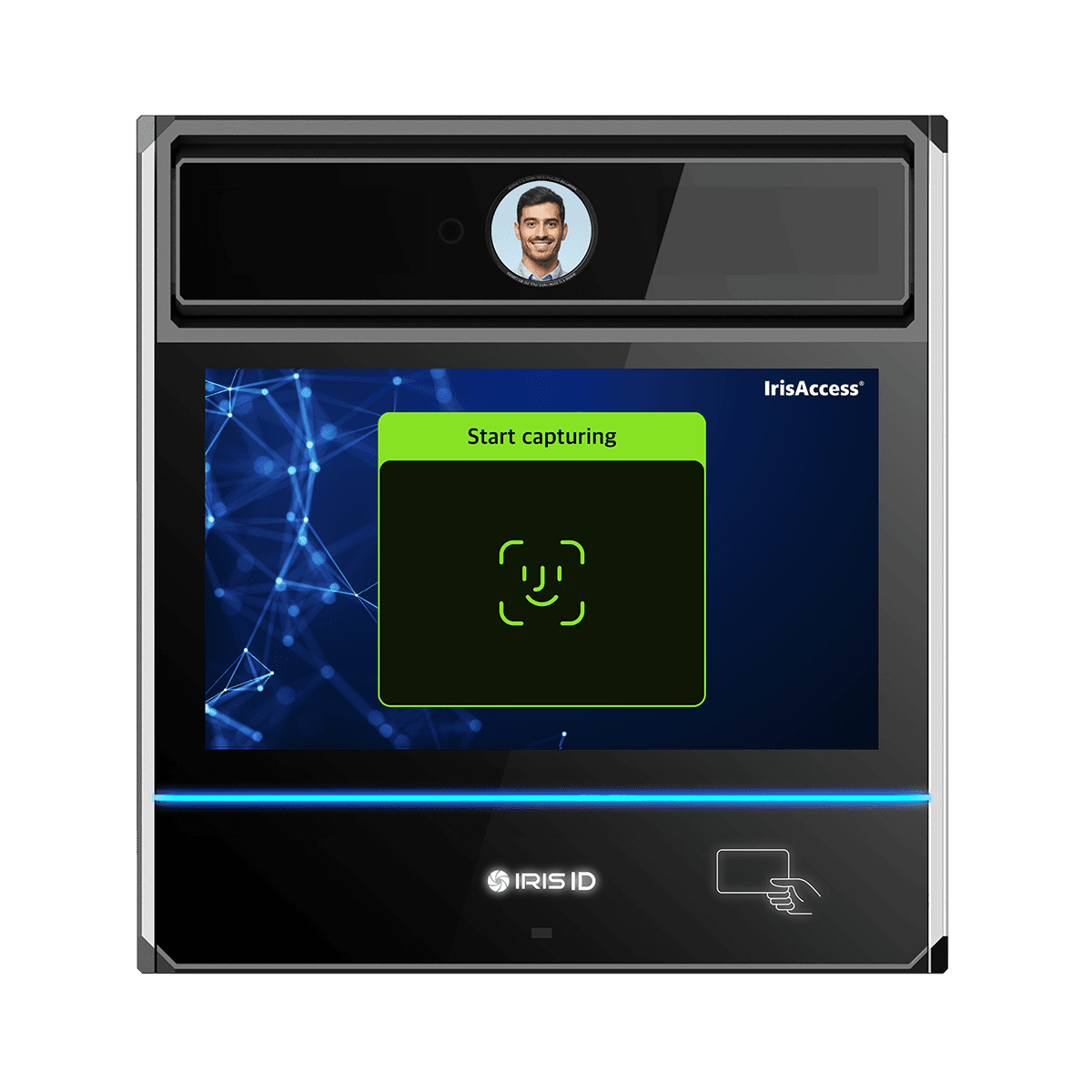

An advanced optical system captures dual irises and face in one glance. A circular guidance LCD steers users into position, then Fusion authenticates in under a second — without cards, PINs, or contact.
Dual iris + face · Circular guidance LCD · 7" touchscreen · OSDP & Wiegand · PoE+
Overview
Access control built on security, privacy, and convenience.
The IrisAccess® iA1000 series delivers next-generation security through iris and face fusion; providing unmatched accuracy, speed, and a frictionless experience. Its advanced optical system instantly captures high-quality biometrics and is supported by a circular LCD interface that intuitively guides users for faster and more consistent authentication. The iA1000 series also incorporates industry-leading security, featuring certified Presentation Attack Detection (PAD) to defend against spoofing and ensure trusted, non-contact identity authentication in all environments.
Designed for flexibility, the iA1000 comes in two configurations, both equipped with dual iris and face cameras and a new circular user-guidance display. Each model includes a 7" touchscreen LCD with optional PIN pad, Wi-Fi, PoE, and support for both OSDP and Wiegand. The optional advanced multi-format card reader not only supports traditional physical cards but is fully enabled for mobile credentials, ensuring the iA1000 is future ready for modern, smartphone-based access ecosystems.
Key Features
Engineered for real-world doors.
Simultaneous Biometric Capture
Automatically captures dual irises and face simultaneously at the same distance.
Presentation Attack Detection (PAD)
A proven set of anti-spoof measures that continue to set the standard for the industry is included.
Non-Contact & Easy Authentication
Automatically captures faces and irises up to 24 inches (60cm).
Intuitive User Feedback LCD
A new circular LCD built into the optical system provides user guidance for fast authentication.
Standards Compliant
IEC 62471:2006, UL 294, CE, FCC, KC, ROHS, UKCA.
Accommodates All User Heights
The optical system automatically adjusts for user heights and is ADA 508 compliant.
Advanced Security
Supports comprehensive data encryption, advanced network security, and secure boot.
Enhanced Capture Range
Wide recognition range of iris 30–60cm (12–24") and face 30–80cm (12–32").
Models
Two configurations. One platform.
iA1000-WPN
Wi-Fi + PoE
Dual iris and face cameras, 7" touchscreen, circular guidance LCD, Wi-Fi and PoE+ — without smartcard.
iA1000-WPH
Wi-Fi + PoE + Smartcard
Same multimodal platform with multi-format card reader for Prox, iCLASS®, Seos®, MIFARE®/DESFire®, and mobile credentials.
Managed by iAMS™
Pair iA1000 with IrisAccess® Management Suite for web-based, multi-site device control, REST API integration, enrollment quality control, and real-time transaction visibility — with a migration path for existing iCAM 7S deployments.
Capture Volume
The iA1000 camera can be installed at a height which accommodates the user base.
Specifications
Technical data
- Dimensions (W x H x D)
- 188mm x 199mm x 34mm (7.4" x 7.8" x 1.3")
- Weight
- 810g (1.8lb)
- Type
- Walk-up
- Power Input
- 24VDC or PoE+
- Display Touchscreen
- Main display: 7" LCD; Selfie display: 39mm (1.54") circular LCD
- User Interface
- Auto-tilt, self-guidance with visual display
- Operation
- All combinations of iris, face, iris & face fusion, PIN, card
- User Capacity
- Up to 100,000 users on device
- Transactions
- Up to 1,000,000 on device (up to 100,000 with audit face images)
- Encryption
- AES-256
- Platform Security
- Secure Boot, Root of Trust
- Matching Speed
- Less than 1 second
- Languages
- Supports multiple languages/characters simultaneously
- Iris Camera
- ISO 29794-6 compliant
- Face Camera
- ISO 29794-5 compliant
- Operating Range
- Iris camera: 30–60cm (12–24") / Face camera: 30–80cm (12–32")
- Tilt
- Auto tilt, -30° to +30°
- Algorithms
- Iris recognition, face recognition, iris/face PAD, lens detection, face mask detection
- Real Time Clock
- Rechargeable battery
- Connectivity
- Ethernet, Wi-Fi (optional)
- Proximity Detection
- ToF sensor
- Card Reader (optional)
- Prox (125kHz) and iCLASS®, Seos®, MIFARE®/DESFire® (13.56MHz) cards supported
- Relay
- 2 dry-contact outputs available
- Wiegand
- Wiegand in/out (flexible up to 200 bits and pass-through to access panels)
- PoE+
- IEEE 802.3at compliant, 30 watts
- Serial
- RS232, RS485 (OSDP), RS422
- Indicator
- Multi-color LED for power and user guidance from 7" LCD
- Certifications
- FCC, CE, KC, UKCA, UL294, ISTA, Eye Safety
- Temperature
- Operating: 0°C – 45°C (32°F – 113°F) / Storage: -20°C – 90°C (-4°F – 194°F)
Product video
Frequently Asked Questions
Yes. The iA1000 and iCAM 7S can operate together. iCAM 7S units will require a firmware update, provided to customers who purchase the iA1000 and iAMS software to be installed in the existing infrastructure.
The iA1000 uses a modern, web-enabled software platform with a different database structure. Iris ID provides a migration tool to transfer all enrollment data from EAC to iAMS. Customers may also operate both systems (iCAM 7S/EAC and iA1000/iAMS) on the same network for a transition period. This allows for gradual migration, proper user training, and verification of data integrity before full cutover.
The iA1000 cannot operate with the EAC software. A migration from the EAC database to iAMS is required, and Iris ID provides a migration tool to convert the EAC database into the iAMS format. As noted above, customers may run both systems – iCAM 7S with EAC and iA1000 with iAMS – on the same network during a transition period. This approach supports phased migration, enables proper user training, and allows customers to validate data integrity before completing the full cutover.
No, not until June 2026. Customers purchasing the iA1000 and iAMS may continue using their existing EAC licenses during this transition period at no additional cost. Iris ID will announce formal pricing for iAMS in mid-2026, and we will continue to honor all existing EAC license holders with a free upgrade path to iAMS.
Yes. With the updated firmware, iCAM 7S devices can operate alongside iA1000 units within the iAMS platform. If the customer needs to maintain both EAC and iAMS during a transition period before full cutover, the iCAM 7S can continue to be managed by EAC until the migration is fully completed.
Iris ID currently offers two iA1000 models: iA1000-WPN (Wi-Fi + PoE, no smartcard) and iA1000-WPH (Wi-Fi + PoE + smartcard). A Wi-Fi–disabled version (requested by corporate security teams) is in development. Pricing will match the WPH/WPN models. Please contact our business development representative for pricing.
