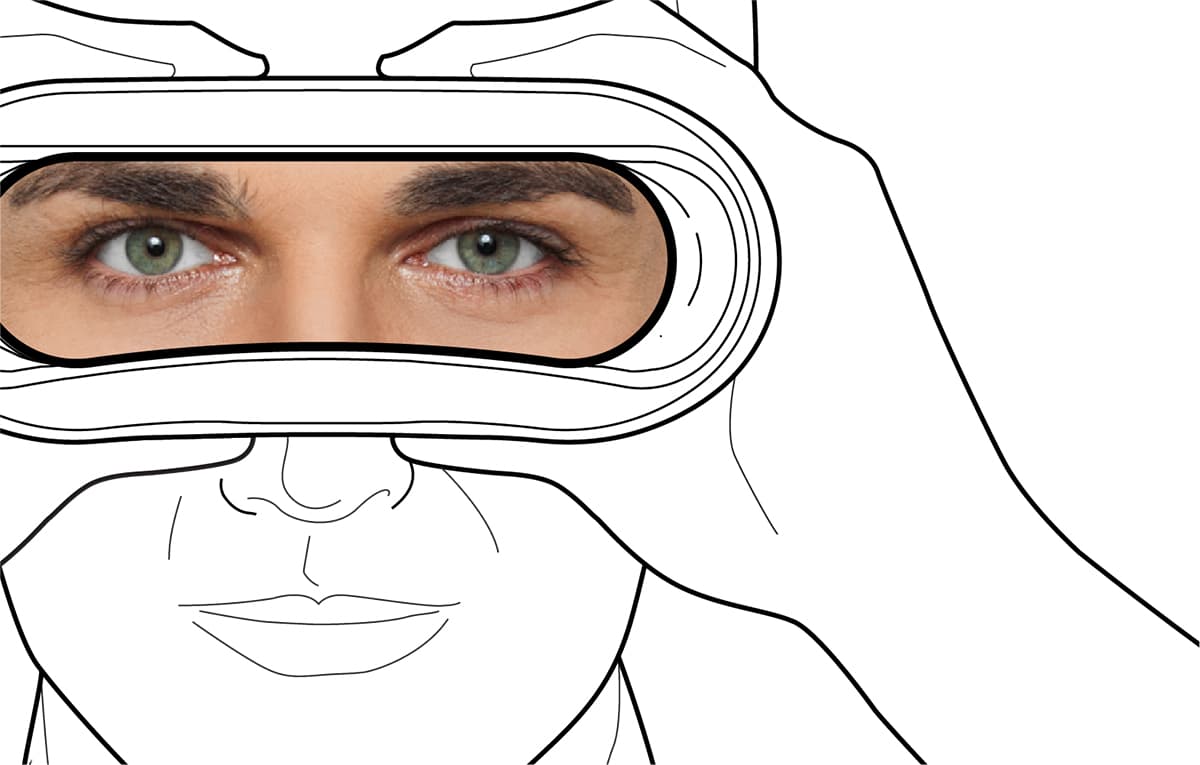

High Speed Dual Iris Capture
Iris ID's BiCamera™ optical technology allows for simultaneous capture of both eyes, as well as real-time capture.

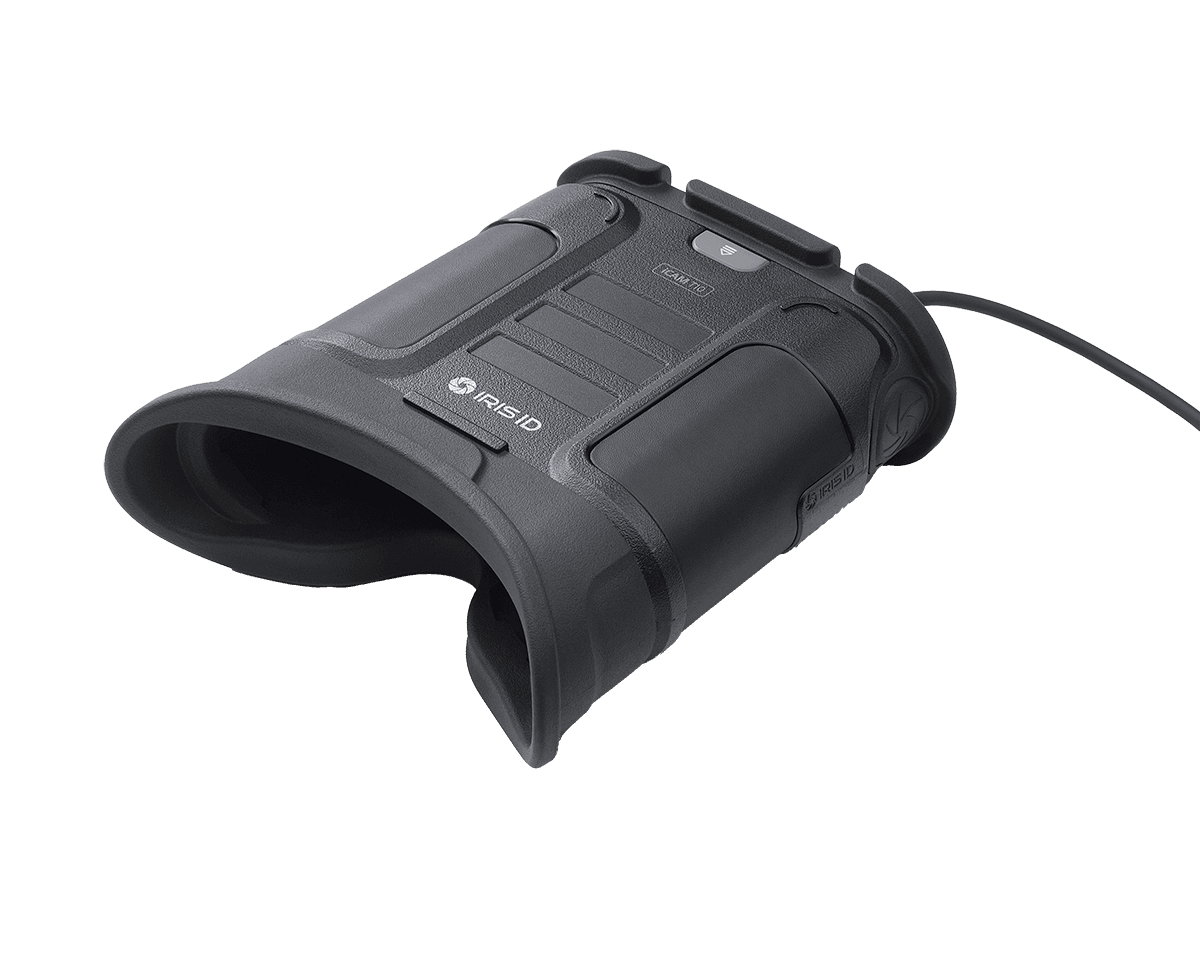

iCAM T10
Fast and Accurate Iris Capture for Large-Scale Registration Programs
High Speed, High Quality Iris Capture Camera
High Speed – Dual Iris Capture
The iCAM T10 performs high-speed dual iris capture and outputs high quality ISO standards compliant images. Both eyes can be simultaneously imaged utilizing the USB 2.0 interface. The T10 provides an unparalleled intuitive user interface, which makes the process easier for the subject and operator. The T10 is also equipped with an orientation sensor and left and right iris capture management controls which can be selected prior to or during the process.
Dual iris · USB 2.0 · IP54 · ISO compliant · Orientation sensor
Overview

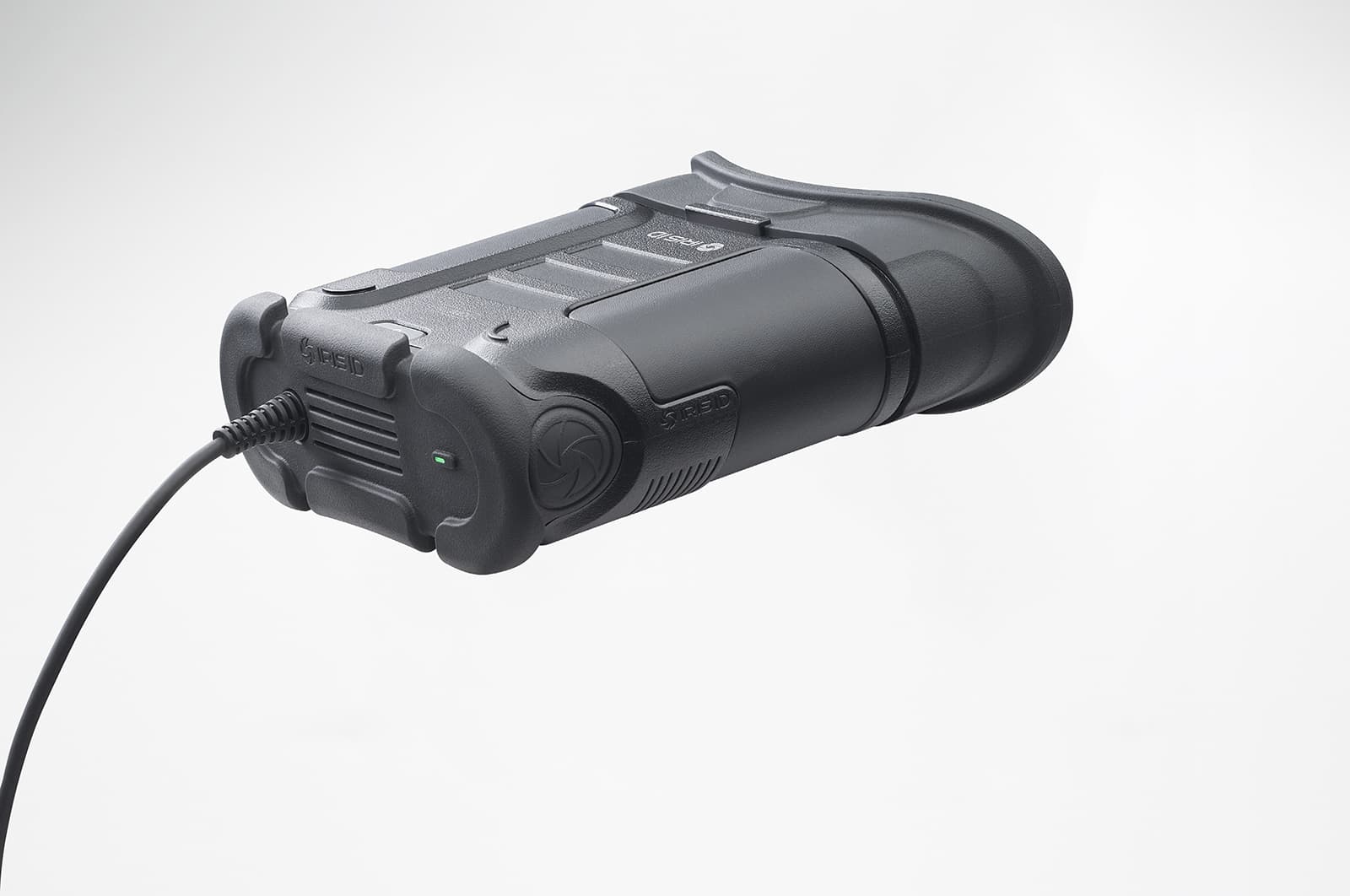

Built for enrollment at national scale.
Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID's rich experience in iris recognition is exemplified in the iCAM T10. Previous handheld iris recognition systems required significant cooperation and for a subject to remain completely motionless in order to capture high quality iris images. Iris ID has developed a series of algorithms which provide the capability to capture iris images in any environment.
The iCAM T10 conforms to IP54 standards for water, humidity, and dust resistance. The elastomeric material and design of the T10 further enhances its durability, allowing for easy cleaning. The T10 meets or exceeds CE, FCC, and Eye Safety industry certification standards.
Dual
Simultaneous iris capture
USB
Bus-powered portable kit
IP54
Dust and water resistant
1.2MP
Auto & manual iris camera
Key Features
Designed for operators and subjects alike.

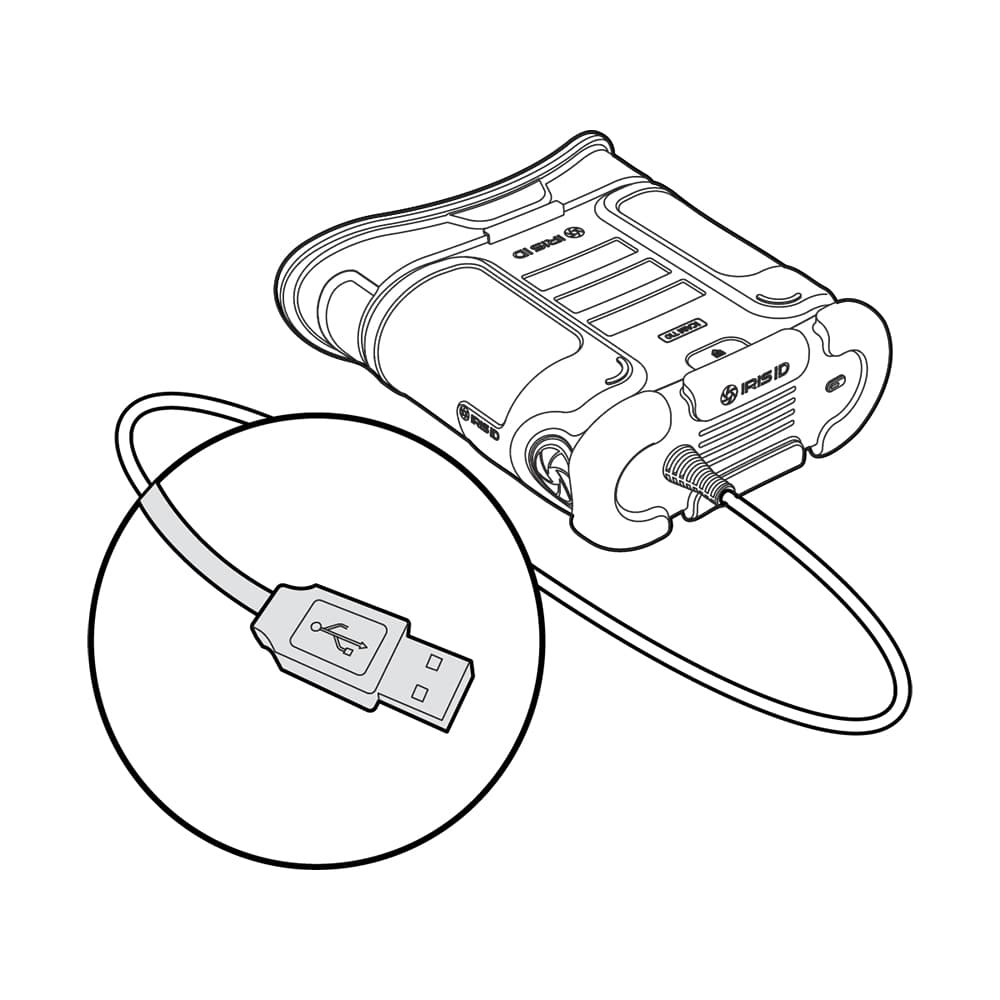

Easy to Carry USB Type
Compact and lightweight iris system with a portable USB interface.
Detachable Sun Visor
The iCAM T10 is designed with a detachable visor and main unit. This allows for easy internal cleaning, even during storage or when exposed to external contamination.

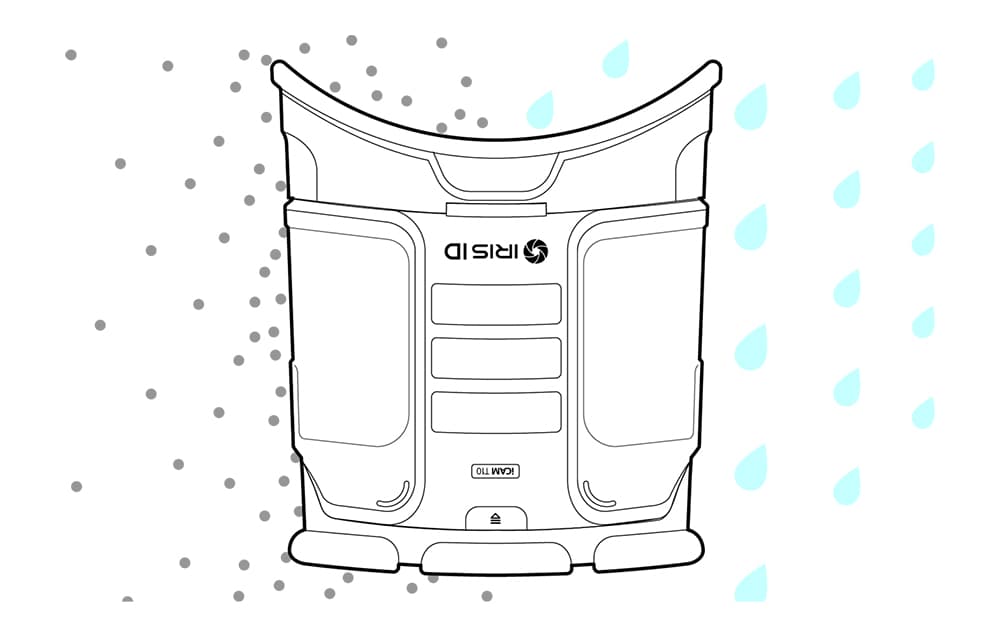

IP54 Compliant
It is designed to be dust and moisture-proof (IP54) to ensure reliable use even in harsh environments.

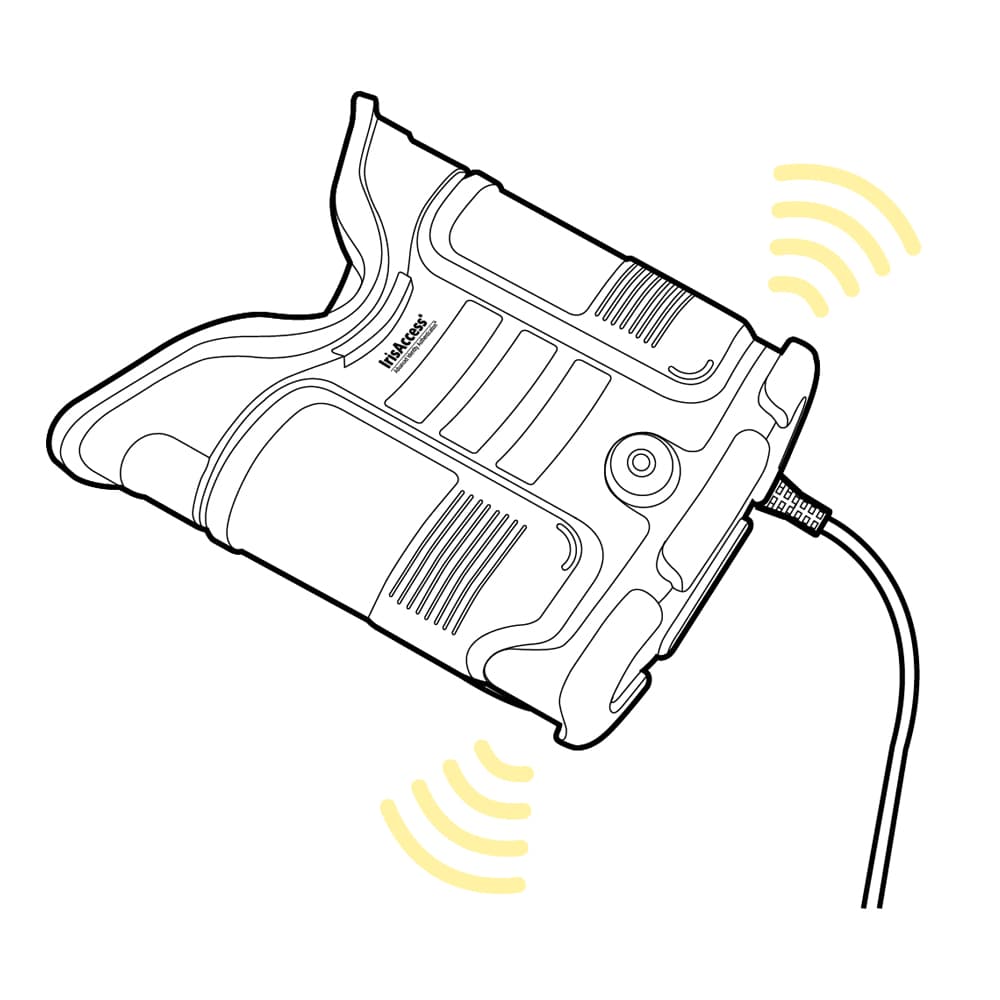

Orientation Sensor
To ensure proper use, a built-in orientation sensor is included. If the T10 is turned upside down, the device will repeatedly beep until the correct orientation is restored.

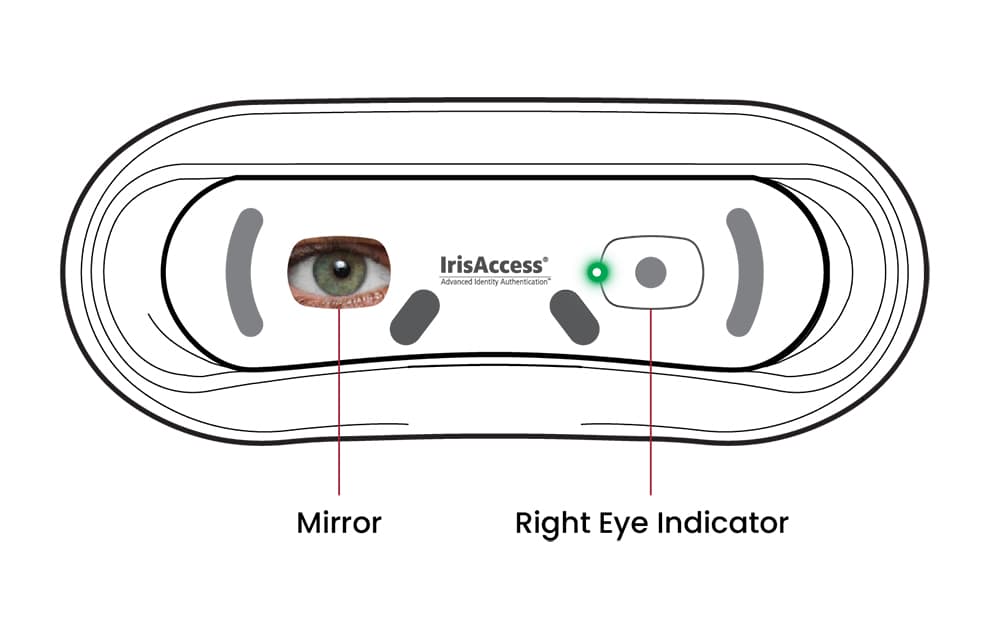

Intuitive User Interface
Products with short recognition distances can experience gazing when captured using conventional methods. To eliminate this phenomenon, the iCAM T10 features a simple and intuitive UI that automatically captures images simply by looking into the mirror with only the left eye. Furthermore, a separate indication LED on the right side assists users with left-eye or visual impairments.
iData Iris SDK
Fully automatic dual iris image capture and quality analysis routines are available as part of the Iris ID SDK API set for field applications of the iCAM T10.
How to Operate

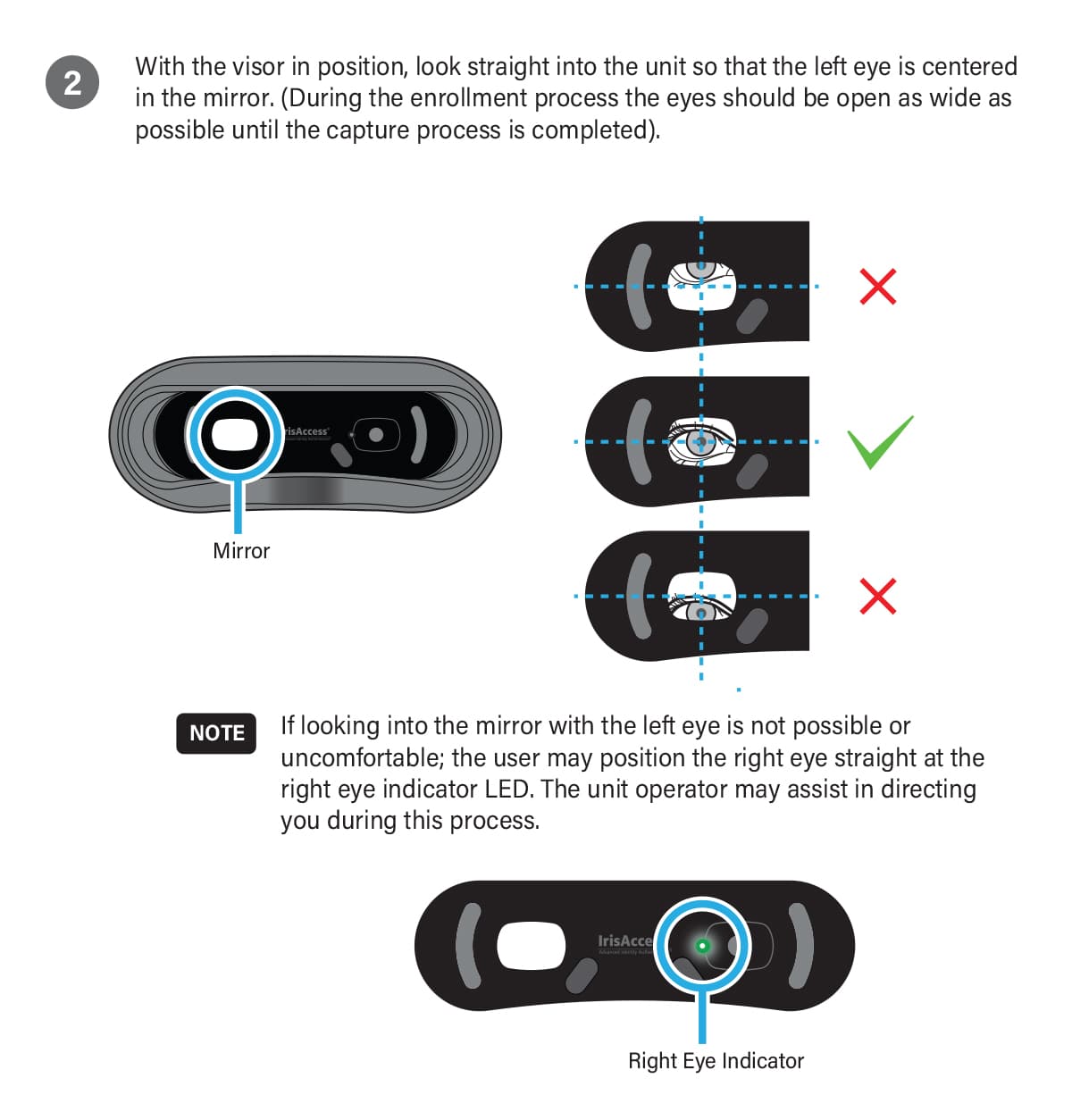

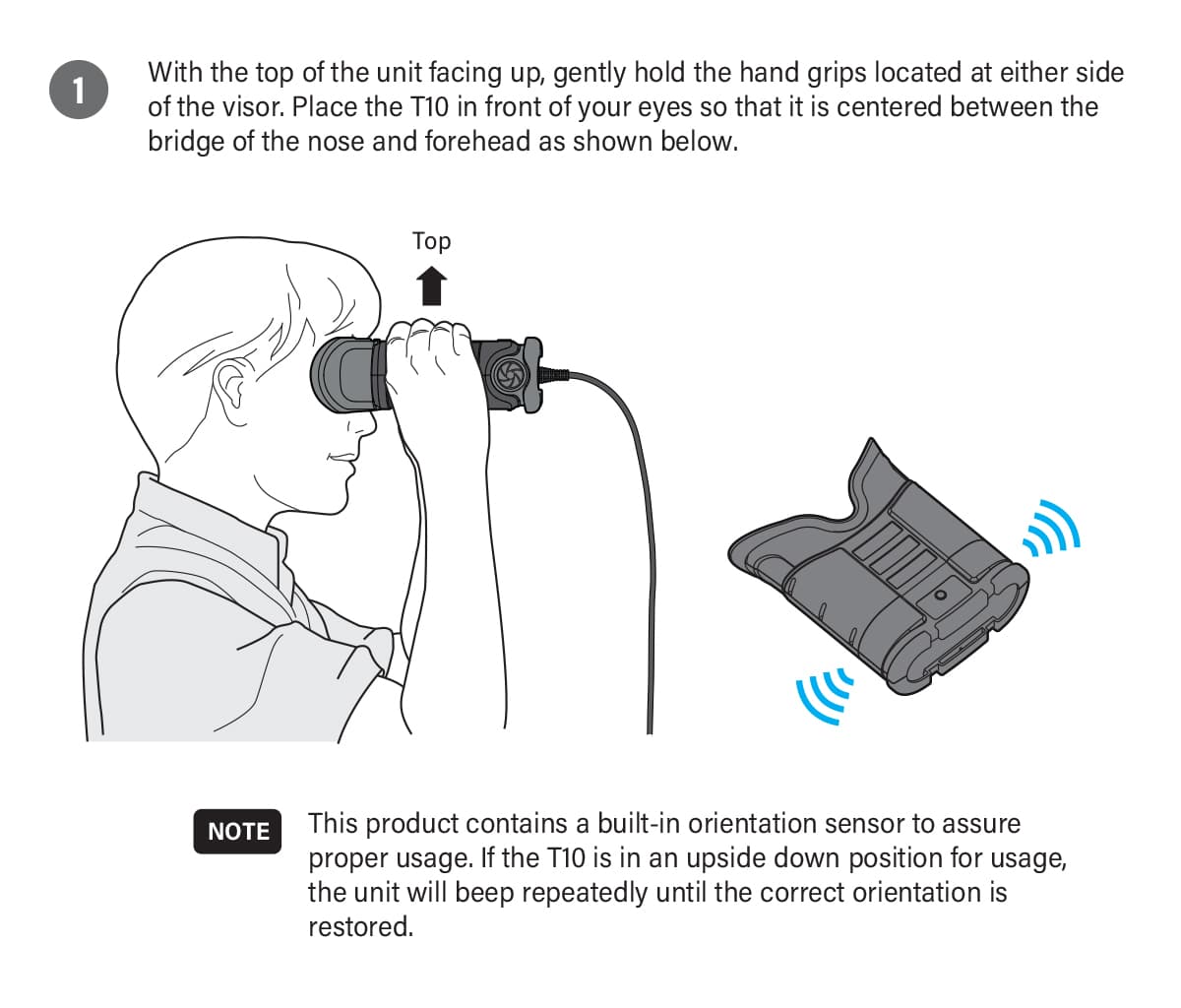

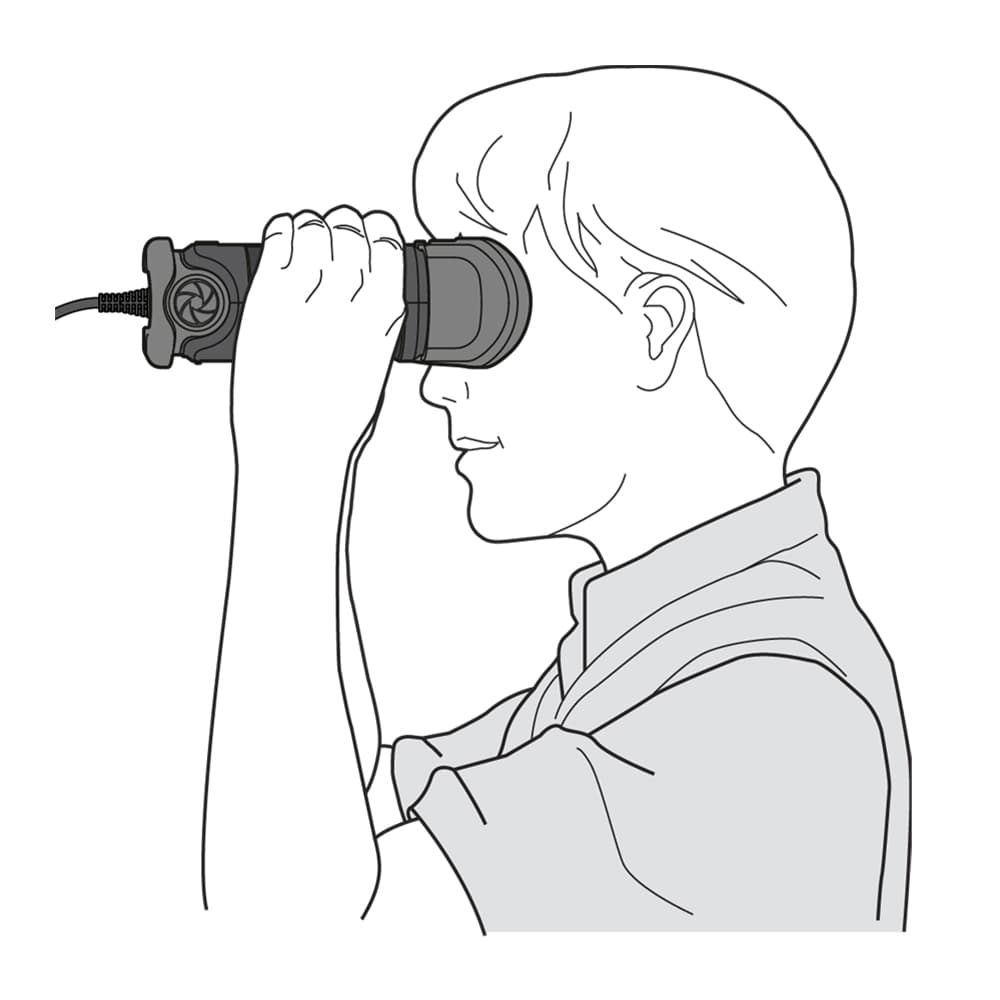

Fully automatic dual iris image capture and quality analysis routines are available as part of the Iris ID SDK API set for field application of the iCAM T10. An illustration of the iris capture process is shown below.
Specifications
Technical data
- Dimensions (W x H x D)
- 7.55" x 6.56" x 2.61" (191.7mm x 166.5mm x 66.2mm)
- Weight
- 0.96lb (0.44kg) — Camera unit: 0.58lb, Sun visor: 0.38lb
- Power Input
- USB bus powered
- Iris Camera
- 1.2MP auto & manual dual iris capture with B&W image sensor
- Iris Capture Range
- 4.92" (125mm)
- Interface
- High speed USB 2.0
- Indication
- External green LED for power indication & internal green LED for right eye positioning; beep sound (optional by application)
- Usability
- Detachable visor for cleaning the front window; IP54 dust and water resistant
- Operating Temperature
- 32°F – 122°F (0°C – 50°C)
- Storage Temperature
- -4°F – 203°F (-20°C – 95°C)
- Humidity
- 0 – 95% non-condensing
- Certifications
- CE, FCC, Eye Safety
