Multimodal – Iris, Face & Fingerprint
Supports iris, face, and fingerprint biometrics for robust multimodal identity verification and identification.
iCAM M300
Portable multi biometric identification
Handheld Platform. Large Scale Results. Compact Form. Uncompromised Performance.
A powerful handheld device that places secure, multimodal identity authentication — iris, face, and fingerprint — directly in the operator's hand.
High Speed – Dual Iris capture
The iCAM M300 performs rapid, simultaneous dual-iris capture and outputs ISO-compliant images that meet NIST IAP-30 (ISO 29794-6) requirements. Its intuitive user interface simplifies the process for both operators and end users, ensuring consistent, high-quality results with minimal training. Combining high-resolution facial imaging, integrated fingerprint capture, and industry-leading iris recognition, the iCAM M300 enables robust multimodal authentication in a wide range of environments.
Iris · Face · Fingerprint · ISO 29794-6 · IP64 · 4G · Android
Overview
Compact form. Uncompromised multimodal performance.
Iris ID has been delivering commercial iris recognition systems since 1997, and today IrisAccess® authenticates more individuals globally than all other iris platforms combined. This deep legacy in high-accuracy biometrics is fully realized in the iCAM M300, a powerful handheld device that places secure, multimodal identity authentication directly in the user's hand. Built on Iris ID's advanced algorithms, engineered to capture high quality images in the most challenging environments, the iCAM M300 supports iris, face, and fingerprint biometrics for fast and reliable identity verification and identification.
Designed for mobility, it is ideal for applications requiring quick checks or searches against smaller biometric galleries. With an onboard orientation sensor and dynamic left/right capture controls, the M300 adapts naturally to how the device is held, making biometric capture smooth, quick, and user-friendly.
3-in-1
Iris, face & fingerprint
IP64
Dust and water resistant
4G
Wireless WAN & GPS
4.3"
Android touch display
Key Features
Built for mobile enrollment and identification.
High Speed Dual Iris Capture
Rapid, simultaneous dual-iris capture with standards-compliant, ISO 29794-6 (NIST IAP-30) output.
500 dpi Single Finger Sensor (with M3-AM)
Optical fingerprint sensor with 500dpi resolution and 256 gray scale values.
MRZ & Magnetic Swipe Card Reader (with M3-AM)
Reads machine-readable passports, visas, and travel documents plus magnetic stripe cards.
FAP-45 Dual Finger Sensor (with M3-IB45)
FAP 45 two-finger roll sensor with light-emitting sensor (LES) technology.
IP64 Compliant
Dust and water resistant for reliable use in field environments.
Connectivity
4G LTE / HSPA+ / GSM / GPRS — wireless WAN & LAN, GPS.
Various Ready-to-use Accessories
Contact smart card reader, cradles, direct auto charger kit, and more.
Modules
Fingerprint and document options.

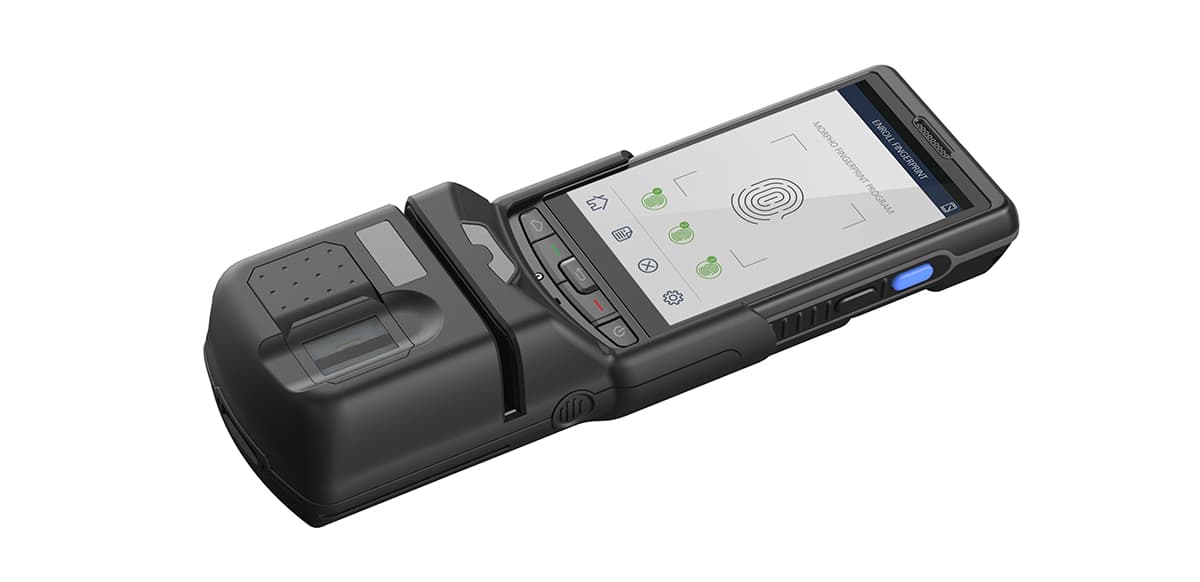

M3-AM
500 dpi Single Finger + MRZ
Optical fingerprint sensor with 500dpi resolution and 256 gray scale values, plus OCR MRZ and magnetic stripe reading for passports, visas, and travel documents.
M3-IB45
FAP-45 Dual Finger Sensor
FAP 45 two-finger roll sensor with light-emitting sensor (LES) technology for high-assurance fingerprint capture in the field.
iData iCAM M300 SDK
Iris ID provides an SDK to enable all functions of the iCAM M300. The development environment closely mimics the widely deployed iData SDK for the iCAM series — Android developers will find integration straightforward. Included SDKs cover iris capture, quality metrics, 1:1 and 1:N matching, contact smart card & NFC, and fingerprint capture, with sample application source code and a runtime demonstration app for evaluation.
Specifications
Technical data
- CPU
- 1.8GHz octa-core processor
- OS
- Android 6.0 Marshmallow
- Dimensions (H x W x D)
- 139mm x 73mm x 21mm (5.4" x 2.8" x 0.8")
- Weight
- 250g (8.8oz) with 1860mAh battery, 300g (10.6oz) with 4000mAh battery
- Display
- 4.3 inches / WVGA (480×800), capacitive touch panel
- Operating Temperature
- -20°C – 60°C (-4°F – 140°F)
- Storage Temperature
- -30°C – 70°C (-22°F – 158°F)
- Humidity
- Non-condensing, 93%
- Face Camera
- 13 megapixel camera with autofocus and LED flash
- Wireless WAN (Worldwide)
- 4G: Band1 (2100), Band3 (1800), Band7 (2600), Band20 (800); 3G: Band1 (2100); 2G: GSM 900, 1800
- Wireless WAN (US)
- 4G: Band2 (1900), Band4 (1700), Band5 (850), Band17 (700); 3G: Band2 (1900), Band4 (1700), Band5 (850); 2G: GSM 850, 1900
- Wireless LAN
- IEEE 802.11 a/b/g/n/ac
- GPS
- Embedded A-GPS
- Iris Camera
- 5MP B&W CMOS sensor
- Iris Operating Range
- 350±30mm (12.2" – 15.3")
- Iris Resolution
- Above 160 pixel/cm
- Iris Capture Volume
- 130mm x 46mm x 80mm
- Iris Illumination
- IR LED
- Fingerprint Module (M3-AM)
- Optical sensor; sensing area 14mm x 22mm x 0.7mm; 500dpi, 256 gray scale values; OCR MRZ (OCR-B and E13B) and magstripe
- Fingerprint Module (M3-IB45)
- FAP 45 two-finger roll sensor; LES (light-emitting sensor); sensing area 40mm x 38mm (1.6" x 1.5"); 500ppi, 256 gray scale values
- Available Options
- Battery pack M3-BTY-IDC includes contact card reader; included battery supports contactless ISO compliant cards
